Electric Order Picker CDDX

Product Features

High position picking, lightweight, high mobility.
Wide vision improves the operator’s driving safety.
Buffering lowers and enhances the entire operation safety.
Double base leg structure makes it a safer operation and easier to work close to the ground.
Low gravity center leads to great stability.

Characteristics	Model No.		CDD10X-45S	CDD15X-45S
	Operation Type		Picking Type	Picking Type

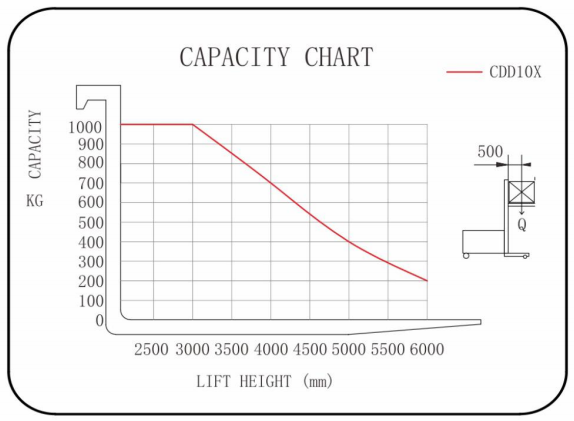

	Load Capacity	Q(kg)	1000	1500
	Load Center	C(mm)	500	500
	Wheelbase	Y(mm)	1425	1845
Weight	Self-Weight(with Battery)	kg	2600	3000
Wheels, Chassis	Wheel Type		PU	PU
	Front Wheel	∅×w(mm)	180*76	180*70
	Driving Wheel	∅×w(mm)	254*102	382*142
	Balance Wheel	∅×w(mm)	125*50	/
	Wheel Tread (Front Wheel)	b10(mm)	1010	1160
	Wheel Tread (Rear Wheel)	b11(mm)	784	/
	Lift Height	h3(mm)	4500	4500
	Max. Height Of Mast When Lifting	h4(mm)	6670	6670
	Height of Overhead Guards	h14(mm)	2210	2120
	Vehicle Body Length	l2(mm)	1865	2500
	Vehicle Body Width	b1(mm)	1130	1300
	Fork Size	s/e/l(mm)	35/100/920	40/122/920
	Fork Spread	b5(mm)	210-770	210-770
	Min. Ground Clearance(Wheelbase Center)	m2(mm)	50	60
	Aisle Width For Pallet 1000*1200(1200 placed across forks)	Ast(mm)	3256	3670
	Min. Turning Radius	Wa(mm)	1657	2140
Performance	DriviSpeed(Unladen/Laden)	km/h	5/3	5/3
	Max. gradeability, Unladen/Laden	%	10/6	10/6
	Service Brake		Electromagnetic	Electromagnetic
Motor, Charger	Drive motor	kw	2.5	6.5
	Lifting Speed, Unladen/Laden	m/s	0.275/0.215	0.275/0.215
	Lowering Speed, Unladen/Laden	m/s	0.150/0.195	0.150/0.195
	Lift motor	kw	3	6.3
	Battery		Lead Acid	Lead Acid
	Battery voltage/nominal capacity	V/Ah	24V300Ah	48V300Ah
	Charger		24V/40A	48V/40A
Other	Type of Drive Control		AC	AC
Other	Sound Level At The Driver’s Ear Acc. To EN12053	dB(A)	75	75
Note: The parameters above are for reference only and are subject to technical change without notice. Thanks for your understanding.
