Product Features
- Compact and stable structure suitable for a large load and high lift.
- Mast reaches and turns backwards, with a small turning radius.
- A branded control system with multiple auto-protection features to provide a higher level of functional safety.
- Branded vertical gearbox, multi-functional solution, and flexible construction module system, optimized gear meshing technology to reduce operating noise, and provide high performance and efficiency.
- EPS reduced 20% energy consumption, operates accurately, reduces driver fatigue, and increases productivity.
- Full AC drive system, strong gradeability, maintenance-free, and no carbon brush. Work stably and efficiently.
| Characteristics | Model No. | CQD12D-45S | CQD15D-45S | CQD20D-45S | |
| Power Type | Electric | Electric | Electric | ||
| Operation Type | Stand Type | Stand Type | Stand Type | ||

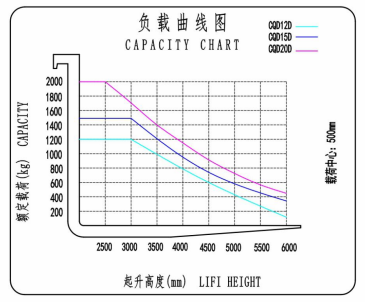

| Load Capacity | Q(kg) | 1200 | 1500 | 2000 | |
| Load Center | C(mm) | 500 | 500 | 500 | |
| Loading Distance, Centre Of Drive Axle To Fork | X(mm) | 145 | 145 | 145 | |
| Wheelbase | Y(mm) | 1399 | 1399 | 1584 | |
| Weight | Service Weight(with Battery) | kg | 2200 | 2200 | 2250 |
| Wheels, Chassis | Wheel Type | PU | PU | PU | |
| Front Wheel | ∅×w(mm) | 254*104 | 254*104 | 254*104 | |
| Drive Wheel | ∅×w(mm) | 230*75 | 230*75 | 230*75 | |
| Balance Wheel | ∅×w(mm) | 150*50 | 150*50 | 150*50 | |
| Wheel Tread, Front Wheel | b10(mm) | 978 | 978 | 978 | |
| Wheel Tread, Rear Wheel | b11(mm) | 804 | 804 | 804 | |

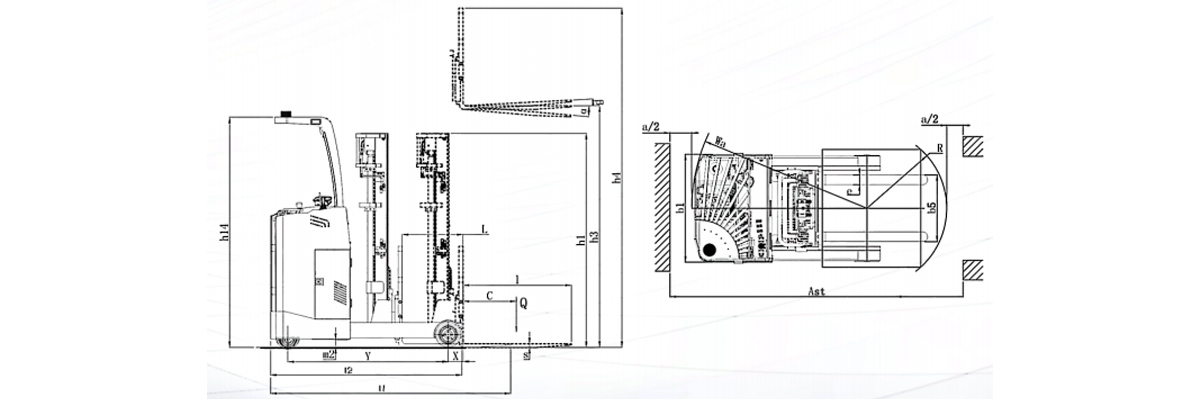

| Dimensions | Mast Height Lowered | h1(mm) | 2120 | 2120 | 2120 |
| Lifting Height | h3(mm) | 4500 | 4500 | 4500 | |
| Max. Height when Lifting | h4(mm) | 5485 | 5485 | 5485 | |
| Height of Overhead Guards | h14(mm) | 2280 | 2280 | 2280 | |
| Fork Face Min. ground Clearance | h13(mm) | 35 | 35 | 40 | |
| Fork Tilting Angle Front/Rear | ° | 3/5 | 3/5 | 3/5 | |
| Overall Length | l(mm) | 2272 | 2272 | 2385 | |
| Body Length | l2(mm) | 1703 | 1703 | 1888 | |
| Overall Width | b1(mm) | 1098 | 1098 | 1098 | |
| Fork Size | s/e/l(mm) | 35/100/1070 | 35/100/1070 | 40/122/1070 | |
| Fork Spread | b5(mm) | 210-705 | 210-705 | 244-705 | |
| Reach Distance | l4(mm) | 500 | 500 | 600 | |
| Min. Ground Clearance | m2(mm) | 77 | 77 | 77 | |
| Aisle Width For Pallet 1000*1200 Crossways | Ast(mm) | 2771 | 2771 | 2880 | |
| Min. Turning Radius | Wa(mm) | 1600 | 1600 | 1781 | |
| Performance | Max. Trave Speed(Unladen/Laden) | km/h | 5/4 | 5/4 | 5/4 |
| Lifting Speed(Unladen/Laden) | m/s | 0.135/0.115 | 0.135/0.110 | 0.135/0.100 | |
| Lowering Speed(Unladen/Laden) | m/s | 0.085/0.120 | 0.085/0.132 | 0.085/0.140 | |
| Max. gradeability, Unladen/Laden | % | 8/6 | 8/4 | 8/4 | |
| Service Brake | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Motor, Charger | Drive motor | kw | 1.5 | 2.5 | 2.5 |
| Lift motor | kw | 3 | 3 | 3 | |
| Battery Type | Lead Acid | Lead Acid | Lead Acid | ||
| Battery voltage/nominal capacity | V/Ah | 24/280 | 24/280 | 24/280 | |
| Charger | V/A | 24/40 | 24/40 | 24/40 | |
| Other | Type of Drive Control | AC | AC | AC | |
| Sound Level At The Driver’s Ear Acc. To EN12053 | dB(A) | 75 | 75 | 75 | |
| Note: The parameters above are for reference only and are subject to technical change without notice. Thanks for your understanding. | |||||
