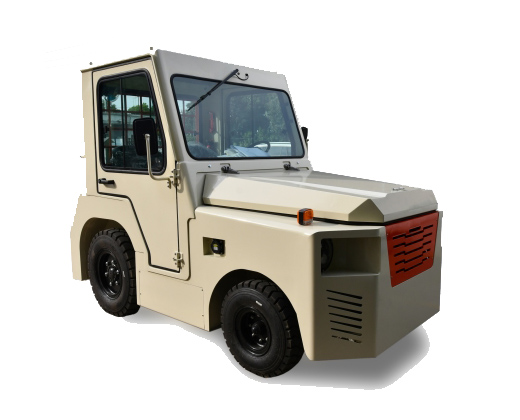

30 Ton Electric Tow Tractor EPQ

Product Features

Low noise, no pollution, and large traction capacity. Widely used in airports, freight service stations, docks, warehouses, and other industries.
Full AC drive system provides strong gradeability, maintenance-free operation, good stability, high efficiency, and regenerative braking.
The imported brand control system offers multiple automatic protection systems and provides a higher level of functional safety.
The front and rear axles adopt a suspended torsion beam structure and shock-absorbing leaf-spring-level buffer dampers to reduce shaking and keep the vehicle stable.
The main structure is composed of tailor-welded square tubes.
The vacuum booster braking system increases the pressure of the hydraulic system, easily enhances the braking performance.
Combined with the design of the front disc brake and the rear drum brake, improves the brake effect, the ventilation and heat dissipation, the linear braking, and the driving safety.

Type No.						EPQ300
Operating type						Seated type
Power type						Lithium battery
Characteristics	Max. traction				KN	25.1
	Rated traction					15
	Max. traction weight	Traction truck			kg	3000
	Max.Travel speed	Forward(full/empty)			km/h	25
		Backward				8
	Min turning radius				wa(mm)	2800
	Max. gradeability when empty load				%	30
	Max. Braking length	No trailer			m	5.7
		Rated traction weight				4.7

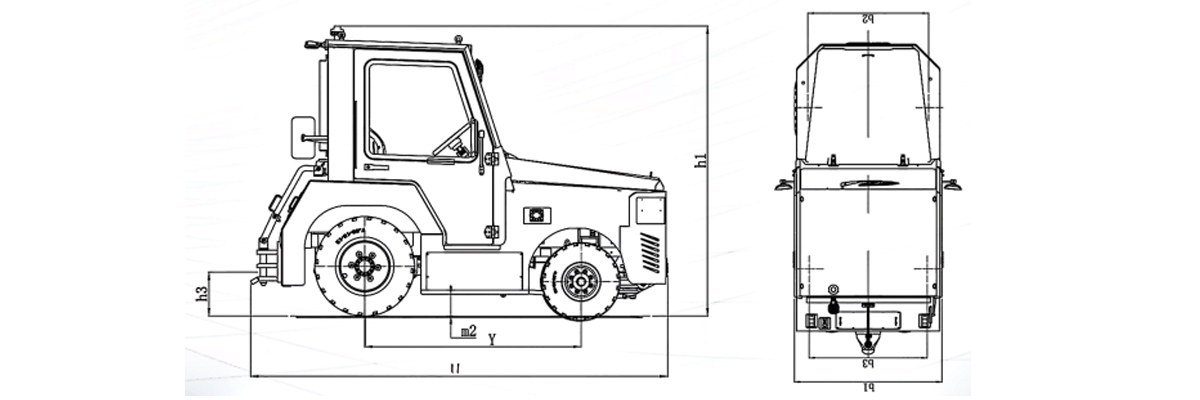

Dimensions	Overall length(with towing hook)			l1	mm	3110
	Overall width					1440
	Overall height (with warning night)			h1		2175
	Front wheelbase			b2		1240
	Rear wheelbase			b3		1250
	Wheelbase			Y		1650
	Towing hitch height (top/bottom)			h3		310/400
	Min ground clearance			m2		180
Tyre	Tire specification		Front wheel			6.50-10PR
			Rear wheel			7.00-15PR
Weight	Overall weight (with cab)					5310
	Axle load when no load(with cab)		Front wheel		kg	1820
			Rear wheel			3490
Transmission	Rated speed				rpm	2065
	Rated power				kW	25
	Rated torque				N·m	106.5
	Rated power				kW	2.5
	Gear ratio					23.5
Battery	Voltage/capacity				V/Ah	80/600
Charger	Voltage/current				V/A	80/80
Steering	Hydraulic power steering					HPS
Brake	Vacuum power braking system					Vacuum power brake system
	Service brake					Rear drum brake and front disc brake
	Parking brake					Mechanical rear wheel brake
Note: The parameters above are for reference only and are subject to technical change without notice. Thanks for your understanding.
