Product Features
- The branded controller offers a multi-protection system and higher-level function safety.
- Compact design and light service weight make for a small turning radius and aisle width. Easy to work into the lift and between floors.
- Long tillers deign makes it safer, light, and flexible steering.
- Ergonomic multi-function handle, integrated control of acceleration, horn, emergency reversing, lift, and lower.
| Characteristics | Model No. | CPDB10W | CPDB12W | |
| Power Type | Electric | Electric | ||
| Operation Type | Walkie Type | Walkie Type | ||

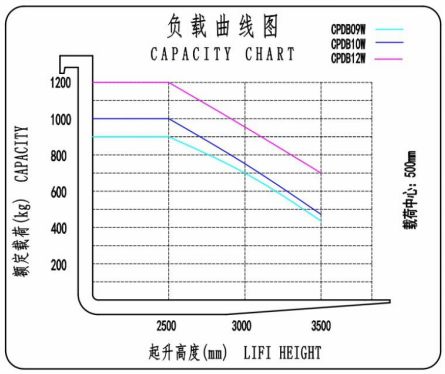

| Load Capacity | Q(kg) | 1000 | 1200 | |
| Load Center | C(mm) | 500 | 500 | |
| Load Distance, Centre Of Drive Axle To Fork | X(mm) | 71 | 85 | |
| Wheelbase | Y(mm) | 1340 | 1312 | |
| Weight | Self-weight with battery | kg | 1320 | 1480 |
| Wheels, Chassis | Wheel Type | PU | PU | |
| Front Wheel | ∅×w(mm) | 140*100 | 210*85 | |
| Rear Wheel | ∅×w(mm) | 210*70 | 250*80 | |
| Wheel Tread, Front Wheel | b2(mm) | 816 | 801 | |
| Dimensions | Height When The Mast Is Retracted | h1(mm) | 2065 | 2115 |
| Free Lift | h2(mm) | 0 | 0 | |
| Lifting Height | h(mm) | 3000 | 3000 | |
| Max. Height When Lifting With Load Backrest | h2(mm) | 3913 | 3913 | |
| Fork Clearance When Mast Lowered | h3(mm) | 35 | 35 | |
| Overall Length (Without / With Forks) | l(mm) | 1652/2573 | 1684/2612 | |
| Overall Width | b1(mm) | 916 | 886 | |
| Fork Size | s/e/l(mm) | 920*100*35 | 1070*100*35 | |
| Fork Spread (Outer Width) | b5(mm) | 200-580 | 200-580 | |
| Min. Ground Clearance (Wheelbase Center) | m2(mm) | 40 | 72 | |
| Aisle Width, Pallet 1000*1200 (1200 Placed Across Forks) | Ast(mm) | 2956 | 2846 | |
| Aisle Width, Pallet 1000*1200 (1200 Placed Along Forks) | Ast(mm) | 3094 | 3083 | |
| Min. Turning Radius | Wa(mm) | 1528 | 1480 | |
| Performance | Driving Speed, Unladen / Laden | km/h | 4.0/3.5 | 4.0/3.5 |
| Lifting Speed(Unladen/Laden) | m/s | 0.215/0.130 | 0.215/0.130 | |
| Lowering Speed, Unladen/Laden | m/s | 0.105/0.130 | 0.105/0.130 | |
| Max. Gradeability, Unladen/Laden | % | 5.0/4.0 | 5.0/4.0 | |
| Service Brake | Electromagnetic | Electromagnetic | ||
| Motor, Charger | Drive motor | kw | 0.75 | 1.5 |
| Lift motor | kw | 2.2 | 2.2 | |
| Battery Type | Lead Acid | Lead Acid | ||
| Battery voltage/nominal capacity | V/Ah | 24/100 | 24/150 | |
| Charger | V/A | 24V/10A | 24V/20A | |
| Other | Type of Drive Control | DC | AC | |
| Sound Level At The Driver’s Ear Acc. To EN12053 | dB(A) | 70 | 70 | |
| Note: The parameters above are for reference only and are subject to technical change without notice. Thanks for your understanding. | ||||
