Product Features
- A branded control system with multiple auto-protection features to provide a higher level of functional safety.
- Branded vertical gearbox, multi-functional solution, and flexible construction module system, optimized gear meshing technology to reduce operating noise, and provide high performance and efficiency.
- EPS reduced 20% energy consumption, operates accurately, reduces driver fatigue, and increases productivity.
- The shock-absorbing spring adjusts the vertical drive unit according to the road conditions, reduces the impact on the drive unit, and improves the smooth-running efficiency.
- Full AC drive system, small size, light weight, maintenance-free, no carbon brush. Works stably and efficiently.
- Emergency power disconnect switch.
- Ergonomic multi-function handle, integrated control of acceleration, horn, emergency reversing, lift, and lower.
- Wide mast design offers better vision.
- AGV Laser navigation and magnetic navigation customizable.

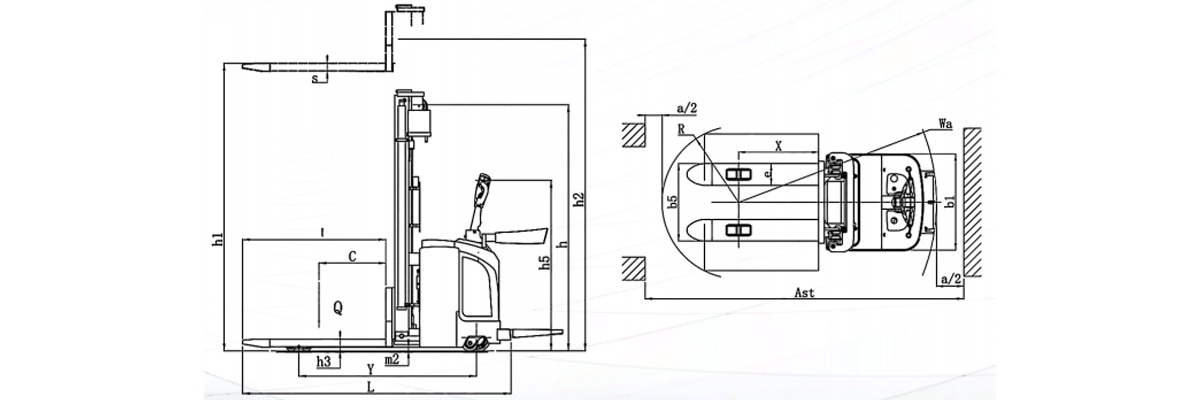

| Characteristics | Model No. | CDD15II-30 | CDD20II-30 | CDD30II-30 | |
| Power Type | Electric | Electric | Electric | ||
| Operation Type | Rider Type | Rider Type | Rider Type | ||
| Load Capacity | Q(kg) | 1500 | 2000 | 3000 | |
| Load Center | C(mm) | 500 | 500 | 500 | |
| Loading Distance, Centre Of Drive Axle To Fork | X(mm) | 676 | 676 | 790 | |
| Wheelbase | Y(mm) | 1430 | 1430 | 1577 | |
| Weight | Service Weight(with Battery) | kg | 1115 | 1150 | 1632 |
| Wheels, Chassis | Wheel Type | PU | PU | PU | |
| Front Wheel | ∅×w(mm) | 80*70 | 80*70 | 85*90 | |
| Rear Wheel | ∅×w(mm) | 230*75 | 230*75 | 230*75 | |
| Front Wheel Base | b2(mm) | 490 | 490 | 530 | |
| Rear Wheel Base | b3(mm) | 658 | 658 | 758 | |
| Dimensions | Mast Lowered Height | h(mm) | 2060 | 2060 | 2188 |
| Lifting Height | h1(mm) | 3000 | 3000 | 3000 | |
| Max. Lift Height | h2(mm) | 3541 | 3541 | 3571 | |
| Handle Height | h5(mm) | 1430 | 1430 | 1430 | |
| Fork Clearance When Mast Lowered | h3(mm) | 85 | 85 | 95 | |
| Overall Length (Platform Folded/Unfolded) | l(mm) | 2185/2605 | 2185/2605 | 2235/2655 | |
| Overall Width | b1(mm) | 850 | 850 | 1020 | |
| Fork Size | s/e/l(mm) | 65/190/1150 | 65/190/1150 | 75/230/1150 | |
| Fork Outer Width | b5(mm) | 680 | 680 | 760 | |
| Min. Ground Clearance | m2(mm) | 30 | 30 | 30 | |
| Aisle Width For Pallet 1000*1200 Crossways(Platform Folded) | Ast(mm) | 2615 | 2615 | 2715 | |
| Aisle Width For Pallet 1000*1201 Crossways(Platform Unfolded) | Ast(mm) | 3016 | 3016 | 3120 | |
| Min. Turning Radius (Platform Folded/Unfolded) | Wa(mm) | 1729/2130 | 1729/2130 | 1880 | |
| Performance | Trave Speed(Unladen/Laden) | km/h | 5.5/5 | 5.5/5 | 5/4 |
| Lifting Speed(Unladen/Laden) | m/s | 0.1/0.09 | 0.1/0.086 | 0.117/0.08 | |
| Decnet Speed(Unladen/Laden) | m/s | 0.082/0.115 | 0.082/0.123 | 0.082/0.140 | |
| Max. Gradeability, Unladen/Laden | % | 8/6 | 8/4 | 6/4 | |
| Service Brake | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Motor, Charger | Drive motor | kw | 1.5 | 1.5 | 3 |
| Lift motor | kw | 2.2 | 2.2 | 3 | |
| Battery Type | Lead Acid | Lead Acid | Lead Acid | ||
| Battery voltage/nominal capacity | V/Ah | 24/210 | 24/210 | 24/210 | |
| Charger | V/A | 24/30 | 24/30 | 24/30 | |
| Other | Type of Drive Control | AC | AC | AC | |
| Sound Level At The Driver’s Ear Acc. To EN12053 | dB(A) | 75 | 75 | 75 | |
| Note: The parameters above are for reference only and are subject to technical change without notice. Thanks for your understanding. | |||||
